Wide range of application to lines with superior airtightness, cleanability and maintainability and emphasis on cleanliness!
Bio-Clean Diaphragm Valve: Standard Lineup Introduction
 |  |
| Manual Valve B400 type /BC400 type | Quick Open/Close Handle Type BQL400NB type |
 |  |
| Pneumatically Operated ON-OFF Valve BPO1400NB type | Pneumatically Operated ON-OFF Valve BPO1400N type (Stainless steel actuator) |
Body specifications
Details of body specifications
Stainless steel body is standard. The body for dead space countermeasures, lining body, etc. are available.
Since each unit part is interchangeable, the optimum material combination can be selected according to the user's conditions.
Special materials and ASME-BPE standards can also be manufactured on request. Please contact our sales representatives for more information.
Standard lineup
 |  |
| Ferrule | Welded joint |
 |  |
| Flange connection | Ferrule(lining) |
| Body type | Material |
|---|---|
| Stainless steel body | SUS316L, SCS13 |
| Synthetic resin lining/coating | PFA lining and ETFE lining |
| Surface finish classification | Processing finish classification (*1) |
|---|---|
| B1 | Internal/external surface #400 buffing |
| B2 | Internal surface only #400 buffing |
| B3 | External surface only #400 buffing |
| E1 | Internal and external surfaces #400 buffing + internal surface electropolishing |
| E2 | Internal surface only #400 buffing + internal surface electropolishing |
(*1) Surface finish method for stainless steel. The processing method may be limited depending on the products.
Please refer to the catalog and drawings for the details of the product and the specifications, or contact our sales representative.
Diaphragm specifications
Details of diaphragm specifications
Bio-Clean diaphragm valves typically use NEW PTFE diaphragms. This is a fluorocarbon resin diaphragm with excellent cleanliness, creep-resistance, penetration-resistance, and abrasion resistance developed by our own techniques.
Our diaphragm has been subjected to various tests under severe conditions to confirm its durability and safety, and is highly reliable for external seals and valve seat seals.
Complied with various standards and standards of the Food Sanitation Act (Japan) and FDA, USP Class-VI.
Material certification and traceability are available on request.
Based on the data and years of experiences, we can also propose material selection according to fluid conditions.
Standard lineup

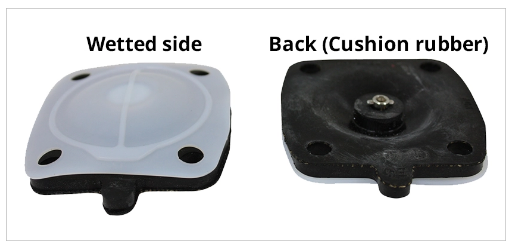

NEW PTFE diaphragm
| Diaphragm type | Materials |
|---|---|
| Fluorocarbon resin diaphragm | NEW PTFE/EPDM, NEW PTFE/EPDM+α(*2) |
(*2): EPDM+α was developed by us to improve the heat resistance of EPDM.
Please refer to the catalog and drawings for the details of the product and the specifications, or contact our sales representative.
